2008 November 8 & 9, Saturday & Sunday


The abundant rainfall has stopped and the temperature has dropped. It was about 5ºC in the early morning this weekend.
During Sunday morning the fog disappeared and, with no wind, the sun created marvellous weather.


WWW   NSO


The mist is fortunately limited to the surrounding lower areas.
Sunday 9:54




___________

Work continued on the roof structure. The roof beams will have to rest on the ring beam, with supporting braces that give the roof an angle of 5º. This angle of 5º (=9%) is ideal for a vegetation roof offering sufficient drainage without much risk of soil run-off.
The space above the ring beam and between the beams will be filled with straw flakes.

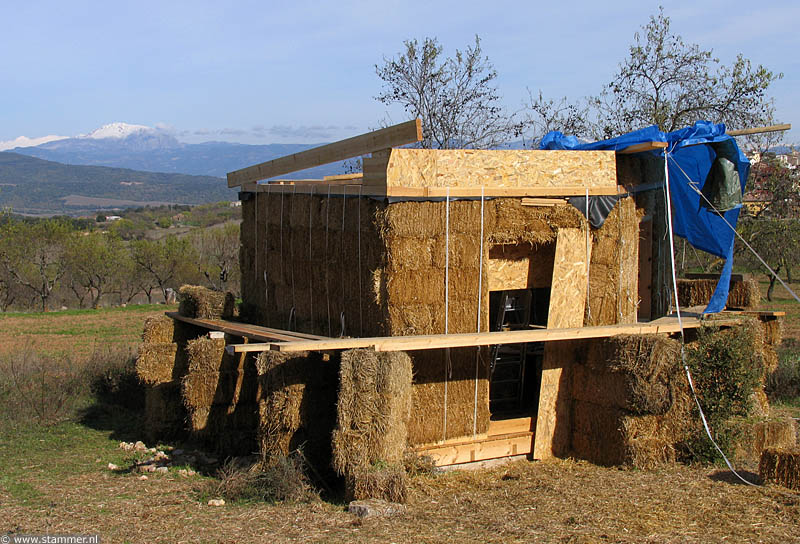

Two roof beams on the right, ring beam with black EPDM sheet, white cordstrap.
Looking north-east.
Sunday 13:46

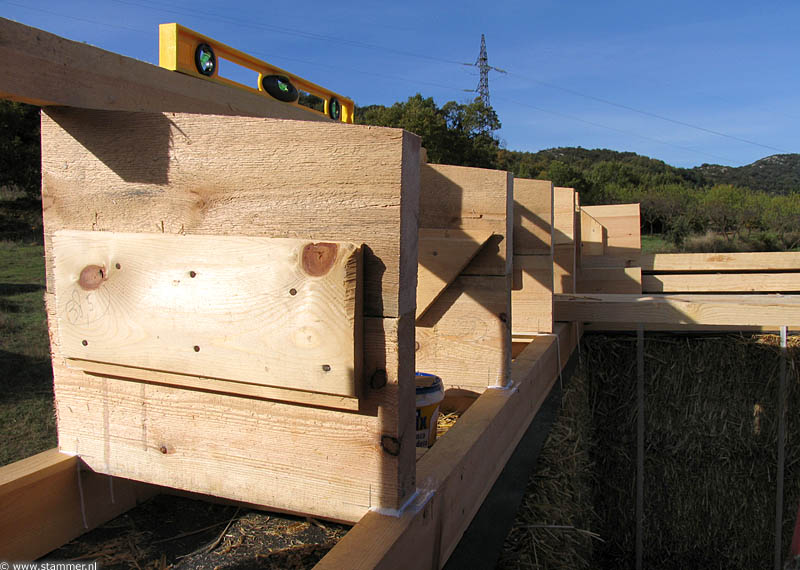

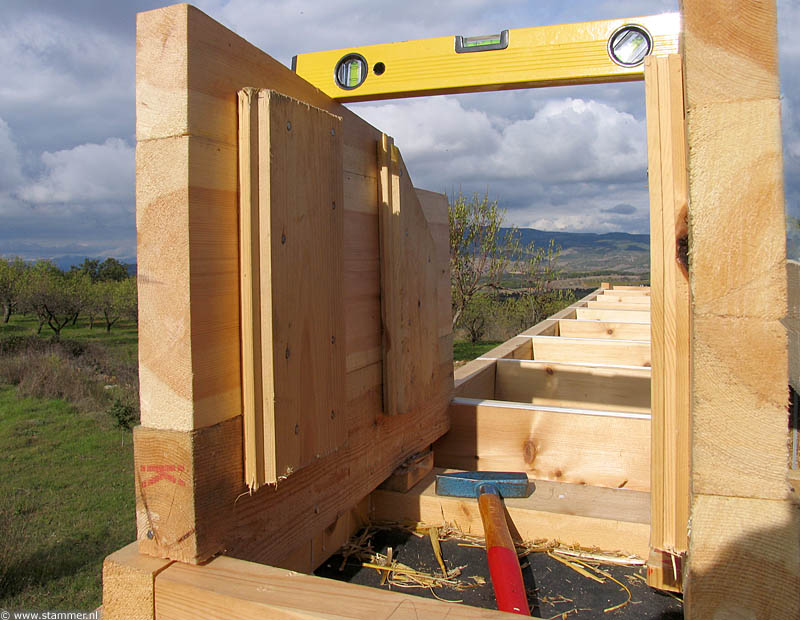

Braces on the south facing ring beam. They elevate the roof 38 cm to give it a slope of 5º.
Abundant use of glue and nails.
Sunday 11:52

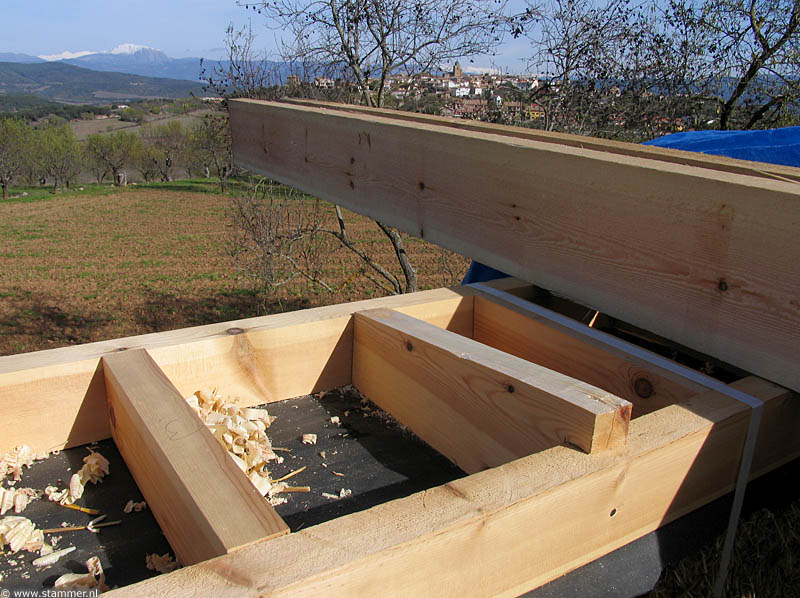

South-west corner, looking north.
Notice the 1.8 cm space on the ring beam on the left that will allow for supporting OSB board.
Saturday 15:02









OSB board in position.
Looking north.
Sunday 14:22

______________

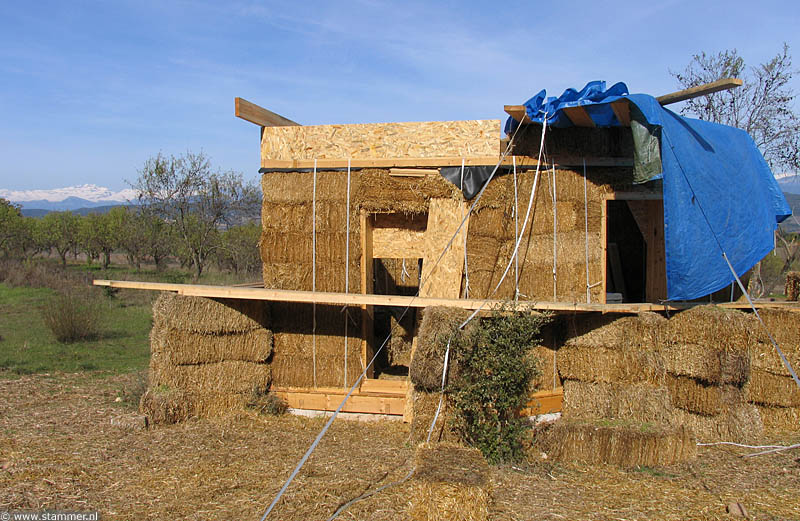

The braces are joined and covered by OSB board. This will not only offer the supporting layer for the earth plaster but also strengthens and fixes the braces.


The roof beams sticks here 65 cm out from the wall. That should perhaps have been  longer but we couldn't get beams longer than 5,7 m.
Looking north-east.
Sunday 14:21




A Blue tit on the feeder with almonds on top and peanuts below.
Looking north.
Sunday 9:45

______________

We activated the bird-feeders again, as we did last year. They are really popular with the birds, although the species interested are limited to the Blue tit (Cyanistes caeruleus) and the Great tit (Parus melanolophus ). They are especially fond of peanuts and (home-grown) almonds with a slight preference for the latter. We offer sunflower seed in another bird-feeder where they can actually take out the whole seed and carry it away (which offers of course less of a show for us).
